PTFE Products

pic_whitePTFE

White Standard Grade PTFE

Size Case/Pack
 1/4″ x 520″ 500
 1/2″ x 100″ 500
 1/2″ x 260″ 500
 1/2″ x 520″ 500
 1/2″ x 610″ 500
 1/2″ x 1296″ 250
 3/4″ x 260″ 350
 3/4″ x 310″ 350
 3/4″ x 520″ 350
 3/4″ x 610″ 350
 3/4″ x 1296″ 150
 1″ x 260″ 250
 1″ x 310″ 250
 1″ x 520″ 250
 1″ x 610″ 250
 1″ x 1296″ 150

Directions for Use

Malaysian PTFE Thread Seal Tape TOMBO® is the coveted brand for PTFE Thread Seal Tapes. It is widely used by plumbers for General Water Plumbing applications. Housed in a convenient spool and cap, TOMBO® is easy to use and the quality is consistent in accordance to ISO 9001-2000 standards.

  • Place end of TOMBO® PTFE Thread Seal Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Frequently Asked Questions

What is PTFE?
PTFE is Polytetrafluoroethylene.

Why is PTFE so special?
PTFE has the lowest coefficient of friction of any known solid material and is very non-reactive. Therefore, it is compatible with a very wide range of materials.

What are PTFE Thread Seal Tapes?
PTFE Thread Seal Tape is an unsintered tape made by extrusion of PTFE paste. It is a modern replacement material for all conventional pipe dopes. It can effectively alleviate many of your piping headaches, while substantially reducing piping cost and maintenance.

Chemical Compatibility

Polytetrafluoroethylene (PTFE) is compatible with the following materials:

  • Water (Regular White)
  • Steam (Premium Pink)
  • Air, compressed (Premium Grade)
  • Alcohols (Premium Grade)
  • Fatty Acids (Premium Grade)
  • Kerosene (UL Yellow Gas)
  • Natural Gas (UL Yellow Gas)
  • Nitrogen (UL Yellow Gas)
  • Acids, dilute (Premium Grade)
  • Ammonia, liquid (Premium Grade)
  • Cutting Oils (Premium Grade)
  • Soap, Liquid (Premium Grade)
  • Ethylene glycol (Premium Grade)
  • Gasohol (UL Yellow Gas)
  • LPG (Premium Oxygen)

Product Specifications

Composition: Min. 99% PTFE
Tape Color: White
Thickness: .09mm
Density: 0.4g/cm3
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F

TOMBO Features

    • Chemically inert and withstands solvents
    • Provides tight assembly and easy disassembly
    • Flame resistant
    • No curing time required
    • Economical to use
pic_hdwhitePTFE

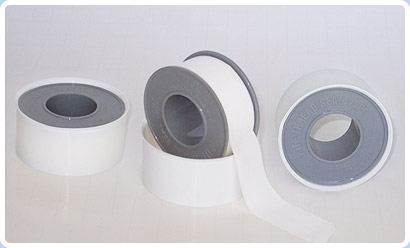

High Density (0.8cm3) PTFE

Size Case/Pack
 1/2″ x 520″ 500
 3/4″ x 520″ 350

Malaysian PTFE Thread Seal Tape TOMBO® is the coveted brand for PTFE Thread Seal Tapes. It is widely used by plumbers for General Water Plumbing applications. Housed in a convenient spool and cap, TOMBO® is easy to use and the quality is consistent in accordance to ISO 9001-2000 standards.

Directions for Use

  • Place end of TOMBO® PTFE Thread Seal Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Frequently Asked Questions

What is PTFE?
PTFE is Polytetrafluoroethylene.

Why is PTFE so special?
PTFE has the lowest coefficient of friction of any known solid material and is very non-reactive. Therefore, it is compatible with a very wide range of materials.

What are PTFE Thread Seal Tapes?
PTFE Thread Seal Tape is an unsintered tape made by extrusion of PTFE paste. It is a modern replacement material for all conventional pipe dopes. It can effectively alleviate many of your piping headaches, while substantially reducing piping cost and maintenance.

Chemical Compatibility

Polytetrafluoroethylene (PTFE) is compatible with the following materials:

  • Water (Regular White)
  • Steam (Premium Pink)
  • Air, compressed (Premium Grade)
  • Alcohols (Premium Grade)
  • Fatty Acids (Premium Grade)
  • Kerosene (UL Yellow Gas)
  • Natural Gas (UL Yellow Gas)
  • Nitrogen (UL Yellow Gas)
  • Acids, dilute (Premium Grade)
  • Ammonia, liquid (Premium Grade)
  • Cutting Oils (Premium Grade)
  • Soap, Liquid (Premium Grade)
  • Ethylene glycol (Premium Grade)
  • Gasohol (UL Yellow Gas)
  • LPG (Premium Oxygen)

Product Specifications

Composition: Min. 99% PTFE
Tape Color: White
Thickness: .09mm
Density: 0.4g/cm3
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F

TOMBO Features

    • Chemically inert and withstands solvents
    • Provides tight assembly and easy disassembly
    • Flame resistant
    • No curing time required
    • Economical to use

OMBO® PTFE Thread Seal Tapes are preferred by plumbers everywhere. It is an ideal leakproof sealant and can be used on anything with a thread.

TOMBO® PTFE Thread Seal Tapes are stringently checked by our Quality Control Department to ensure that we meet your expected quality.

pic_yellowPTFE

UL Yellow Gas Line Tape (100PSIG Rated)

Size Case/Pack
 1/2″ x 260″ 500

TOMBO Yellow Gas Line Tape is a specially certified PTFE Thread Seal Tape for the Oil and Gas industry.

The ultra high density of our TOMBO Yellow Gas Line Tape reduces the possibility of Liquid Petroleum Gas (LPG) and Compressed Natural Gas leakage through penetration.

Description

Our TOMBO Yellow Gas Line Tape is certified by Underwriters Laboratory (UL) USA for usage in threaded assemblies handling Gasoline, Petroleum Oils, Propane, Butane, Naptha, Benzene, Kerosene, Natural Gas for pressures not over 100 PSIG (File No: MH 25476)

The TOMBO Yellow Gas Line Tape is also certified by the Australian Gas Association (AGA) under AG 208-1998, ‘Approval Requirements For Jointing Compounds and Material For Use In Gas Pipe Joints’

Directions for Use

NG vapors can form a flammable mixture with air which, if ignited, may release explosive force causing structural damage.

  • Place end of TOMBO Yellow Gas Line Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Characteristics & Conformances

  • Provides tight seal; permits easy disassembly.
  • Flame resistant.
  • Color coded ‘YELLOW’ for easy identification.
  • No curing time required.
  • Chemically inert and withstands solvents.
  • Conformance to MIL SPEC A-A-58092.

Natural Gas (NG) is one of the primary sources of energy in the industrial sector. It is used as a fuel feedstock and in a variety of industrial processes.

NG is now widely used for heating water, cooking, and drying clothes. Consumers prefer NG because it is a high quality and economical energy source.

Product Specifications

Composition: Min. 99% PTFE
Tape Color: Yellow
Thickness: .09mm (+/- 10%)
Density: 1.2g/cm3 (+/- 0.1G/cm3)
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F
Pressure Range: Certified by UL for handling hydrocarbons for pressures not over 100 PSIG.
pic_pinkPTFE

Premium Pink Plumbers Tape PTFE

Size Case/Pack
 1/2″ x 260″ 500

TOMBO Premium Pink Plumbers Tape is designed for sealing threaded joints in general water systems and water heating systems. It is certified by DIN-DVGW* for usage in Hot Water up to 125°C and <= 7 bar in accordance to DIN EN 751-3, Class GRp.

Description

The high density of the TOMBO Premium Pink Plumbers Tape conforms and holds the thread readily when wrapped around the specific threaded joint, reducing the occurrence of loose threads.

When properly applied, TOMBO Premium Pink Plumbers Tape requires only 3 overlapping wraps to effect a leakproof joint**.

Directions for Use

Exposure to water at 140°F for 5 seconds will result in third-degree burns. -Waller et al. 1993

  • Place end of TOMBO Premium Pink Plumbers Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Characteristics & Applications

  • Provides tight seal; permits easy disassembly.
  • Flame resistant.
  • Color coded ‘PINK’ for easy identification.
  • Compatible with a broad range of piping materials.
  • Chemically inert and withstands solvents.
  • Conformance to MIL SPEC A-A-58092.

Every year, around 20 people in the UK die as a result of scalds caused by hot bath water.

Every year, a further 570 people in the UK suffer serious scald injuries caused by hot bath water.

Product Specifications

Composition: Min. 99.5% PTFE
Tape Color: Pink
Thickness: .09mm (+/- 10%)
Density: 1.2g/cm3 (+/- 0.1G/cm3)
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F
Pressure Range: For usage on pipe threads of liquid systems of 2,000psig or less.
pic_greenPTFE

Premium Oxygen Tape (1.4cm3) PTFE

Size Case/Pack
 1/2″ x 260″ 150
 1/2″ x 520″ * 150

The Malaysian Seal Tape (TOMBO®) is our specially formulated PTFE Thread Seal Tape for application in piping, valves and fittings, and other components for oxygen useage. The maximum density of our tapes ensure optimum usage safety in Gaseous Oxygen (GOX) and liquid Oxygen (LOX) systems.

Compliance & Approvals

TOMBO Premium Oxygen Tape is tested by the world renowned German Fderal Institute for Material Research and Testing (BAM) for GOX usage up to a Maximum oxygen pressure of 25 bar and a Maximum Temperature up to 60°C*.

Our Malaysian made (TOMBO®) Premium Oxygen Tape is also suitable for usage in components for LOX services.**.

Directions for Use

Highly concentrated sources of oxygen promote rapid combustion and therefore are fire and explosion hazards in the presence of fuels.

  • Place end of Malaysian Seal Tape (TOMBO®) Premium Oxygen Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Characteristics & Applications

  • Provides tight seal; permits easy disassembly.
  • Flame resistant.
  • Color coded ‘GREEN’ for easy identification.
  • Compatible with a broad range of piping materials.
  • Chemically inert and withstands solvents.
  • Conformance to MIL SPEC A-A-58092.

Product Specifications

Composition: Min. 99.5% PTFE
Tape Color: Green
Thickness: .09mm (+/- 10%)
Density: 1.4g/cm3 (+/- 0.1G/cm3)
GOX Max Temp.: -60°C
GOX Max Presure: 25 Bar
pic_industrialPTFE

Premium Industrial Grade Tape (1.2cm3) PTFE 2000psig

Size Case/Pack
1/2″ x 260″ 150
1/2″ x 520″ 150

Seal Tape (TOMBO®) Premium Industrial Grade Tape is a special high density PTFE Thread Seal Tape designed for industrial chemical applications.

The high density of the Seal Tape (TOMBO®) Premium Industrial Grade Tape reduces the possibility of chemical seepage.

Description

Common PTFE thread sealing tape is highly porous due to the tapes being stretched after extrusion. The high porosity of these tapes allow chemical compounds to permeate through the voids in the tape. This is not permissable as leakage of chemicals will pose a potential health and environmental hazard.

Seal Tape (TOMBO®) Premium Industrial Grade Tape will not break, tear or split easily during wrapping. Therefore, it is suitable for joints with both coarse and fine threads.

Directions for Use

For pipes with coarse threads, 50% overlap of TOMBO Premium Industrial Grade Tape is recommended to ensure pipe threads are properly wrapped.

  • Place end of Malaysian Seal Tape (TOMBO®) Premium Oxygen Tape on pipe thread 1/8″ (3mm) from end of pipe.
  • Wrap tape around pipe stretching slightly to pull tape into threads.
  • Slight overlap on the starting turn.
  • Cover all threads and pull hard to tear the tape.
  • Assemble joint.

Characteristics & Applications

  • Provides tight seal; permits easy disassembly
  • Flame resistant.
  • Self lubricating; rethreads worn away threads.
  • No curing time required.
  • Chemically inert and withstands solvents.
  • Conformance to MIL SPEC A-A-58092.

Product Specifications

Composition: Min. 99.5% PTFE
Tape Color: White
Thickness: .09mm (+/- 10%)
Density: 1.2g/cm3 (+/- 0.1G/cm3)
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F
Presure Range: For usage on pipe threads of liquid systems of 2,000psig or less.
pic_hdyellowPTFE

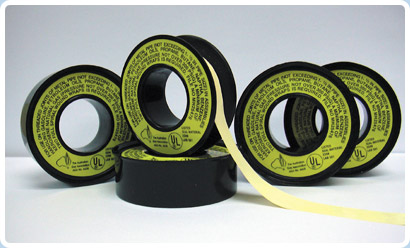

High Density (UL®) (AGA) (ASTM) Yellow Gas Line (300PSIG Rated) PTFE

Size Case/Pack
 1/2″ x 260″ 150
 1/2″ x 520″ 150

Description

Stringently tested for handling Gasoline, Petroleum Oils, Propane, Butane, Naptha, Benzene, Kerosene and Natural Gas. *Certified by Underwriters Laboratories (UL®),

Ultra high density (1.40 g/cm3) ensures that PTFE tapes sit into threads without shredding or tearing.

1. Stringently tested*
For handling Gasoline, Petroleum Oils, Propane, Butane, Naptha, Benzene, Kerosene and Natural Gas. *Certified by Underwriters Laboratories (UL®)

2. Leak Tight
Ultra high density (1.40 g/cm3) ensures that PTFE tapes sit into threads without shredding or tearing.

3. Cost Effective
Only a Minimum of Two Full Spiral wound wraps required for a leak-tight seal.

4. Flame Resistant
PTFE cannot burn, char or melt.

5. SAFETY CANNOT BE COMPROMISED!

Compliances & Approvals

  • Underwriters Laboratories (UL®), File No. MH25476
  • Australian Gas Association (AGA), App. No. 6635
  • American Society for Testing & Materials (ASTM, D6585 Type 1)
  • General Service Administration (GSA), A-A-58092
  • Japanese Industrial Standards (JIS), K 6885

Product Specifications

Material: Polytetrafluoroethylene (PTFE)
Tape Color: Yellow
Thickness: .09mm (in accordance to GSA: A-A-58092)
Density: 1.40g/cm3 (in accordance to ASTM D6585 Type 1)
Temp. Range: -100°C ~ +260°C
-212°F ~ +500°F
Certified Working Presure:
Rating up to 300PSIG
